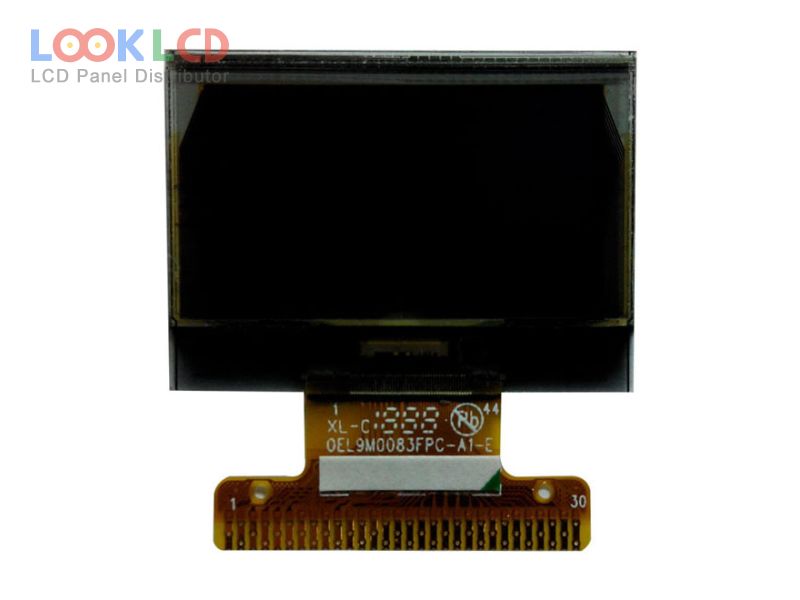

| Numer części | OEL9M0083-R-E |
| Marka | Other |
| Rozmiar | 0.96 |
| Aplikacja | |
| Rezolucja | 128×64 |
| Kompozycja | OLED |
| Jasność | |
| CR | 10000:1 |
| Zabarwienie | Mono(Red) |
| Podświetlenie | self |
| Interfejs | CPU/SPI/I²C |
| marka panelu | TRULY |
| model panelowy | OEL9M0083-R-E |
| typ panelu | PM-OLED , OLED |
| rozmiar panelu | 0.96 inch |
| rezolucja | 128×64 |
| aktywny obszar | 21.74×11.175 mm |
| zarys | 26.7×19.26×1.65 mm |
| powierzchnia | |
| jasność | |
| Współczynnik kontrastu | 10000 : 1 (Min.) |
| wyświetlać kolory | Mono(Red) (1-bit) |
| Kąt widzenia | 80/80/80/80 (Min.)(L/R/U/D) |
| częstotliwość | 100Hz |
| układ kierowniczy | COG Built-in SH1106G |
| interfejs sygnału | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
