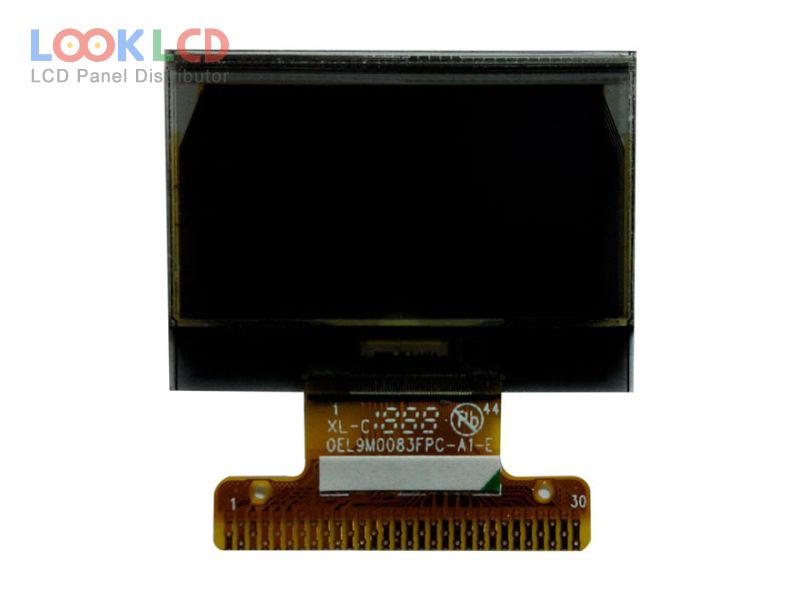

| Numer części | OEL9M0083-Y-E |
| Marka | Other |
| Rozmiar | 0.96 |
| Aplikacja | |
| Rezolucja | 128×64 |
| Kompozycja | OLED |
| Jasność | |
| CR | 10000:1 |
| Zabarwienie | Mono(Yellow) |
| Podświetlenie | self |
| Interfejs | CPU/SPI/I²C |
| marka panelu | TRULY |
| model panelowy | OEL9M0083-Y-E |
| typ panelu | PM-OLED , OLED |
| rozmiar panelu | 0.96 inch |
| rezolucja | 128×64 |
| aktywny obszar | 21.74×11.175 mm |
| zarys | 26.7×19.26×1.65 mm |
| powierzchnia | |
| jasność | |
| Współczynnik kontrastu | 10000 : 1 (Min.) |
| wyświetlać kolory | Mono(Yellow) (1-bit) |
| Kąt widzenia | 80/80/80/80 (Min.)(L/R/U/D) |
| częstotliwość | 100Hz |
| układ kierowniczy | COG Built-in SH1106G |
| interfejs sygnału | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| OEL9M0039-B-E | Other | 1.5 | 128×128 |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| OEL9M0064-G-E | Other | 2.0 | 128×32 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| A056VN01 V0 | AUO | 5.6 | 640×480 |
| C-51505NFJ-SLW-AIN | Kyocera | 3.0 | 20×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| DMC-16230NY-LY-EEE-EGN | Kyocera | 3.8 | 16×2 |
| LQ056A3AG01 | SHARP | 5.6 | 320×234 |
| LTA070B2C0F | TOSHIBA | 7.0 | |
| LTA080B441A | TOSHIBA | 8.0 | 480×234 |
| LTV350QV-F02 | Samsung | 3.5 | 320×240 |
| TD043MTEA2 | TPO | 4.3 | 800×480 |
| TFD58W40-F | TOSHIBA | 5.8 |
